Final Acceptance & Packaging

  • Completeness: all checks “pass”, labels applied, protective covers/spacers installed (if specified)

  • Cleaning/conformal coating (if required) performed and documented

  • ESD‑safe packaging (ESD bag, desiccant, markings), packing slip with SN/Rev./FW version

  • Handover to stock/shipping with full data set

Equipment

  • Thermal Welding Machine

  • Ziplock bags (size L x W, 120x80 mm, electrostatic safe)

  • Yachta PCBs

  • Cube magnets 5x5x5 mm

  • Cylinder magnets D3x5 mm

  • Labels

    ../_images/Parts.jpg

    Fig.: Parts for packaging

Procedure

1. Insert the PCB in Zip bag with the component side facing up

2. Seal the ziplock bag hermetically

  • The seal must be completely sealed and continuous

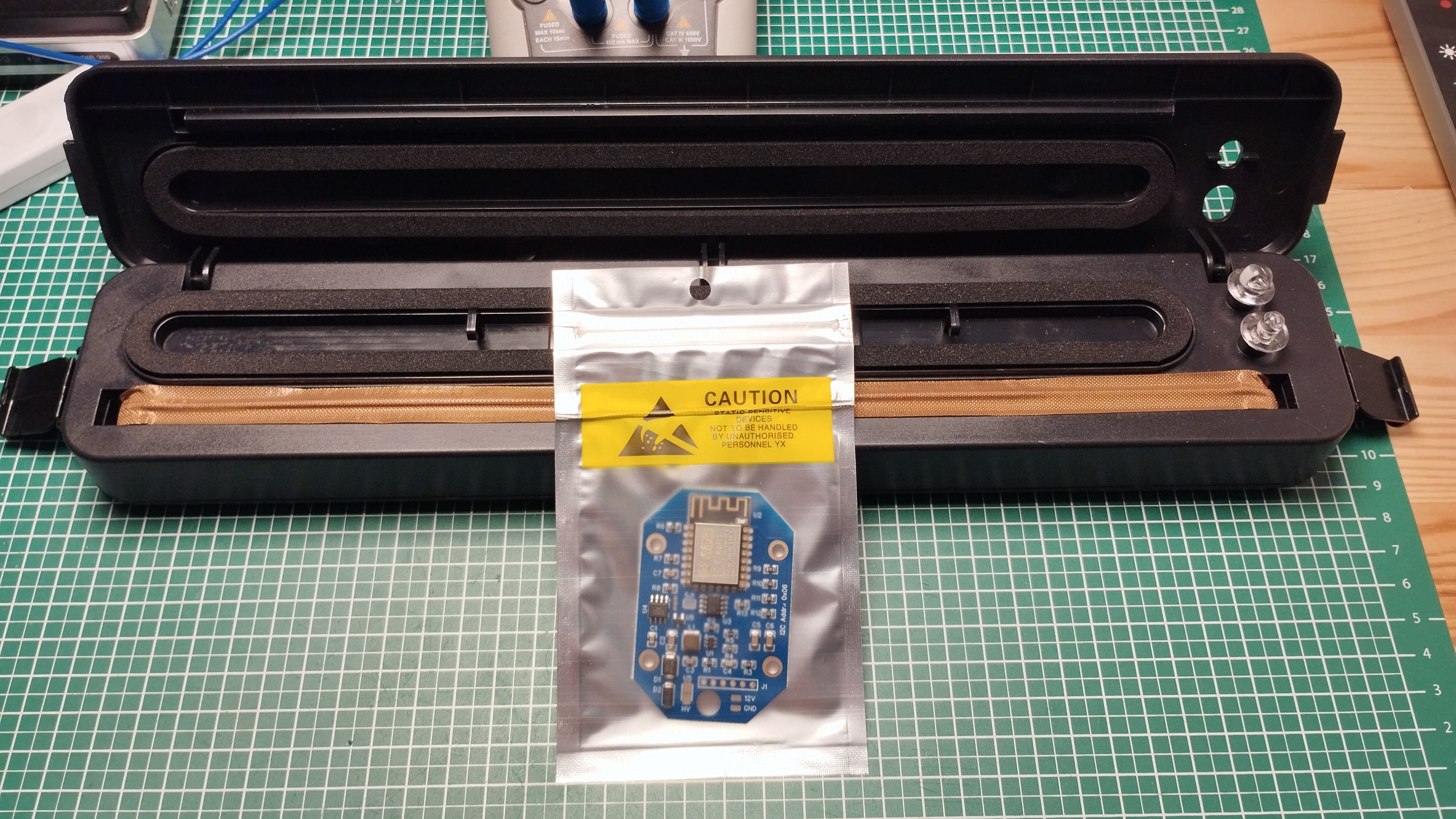

../_images/PCB_Ziplock_Bag_Sealed.jpg

Fig.: Sealed ziplock bag

3. Insert the magnets

  • 1x cube magnet 5x5x5 mm

  • 4x cylinder magnets D3x4 mm

  • All magnets must adhere to each other

4. Close the ziplock

5. Attach the label to the back

6. Final quality check

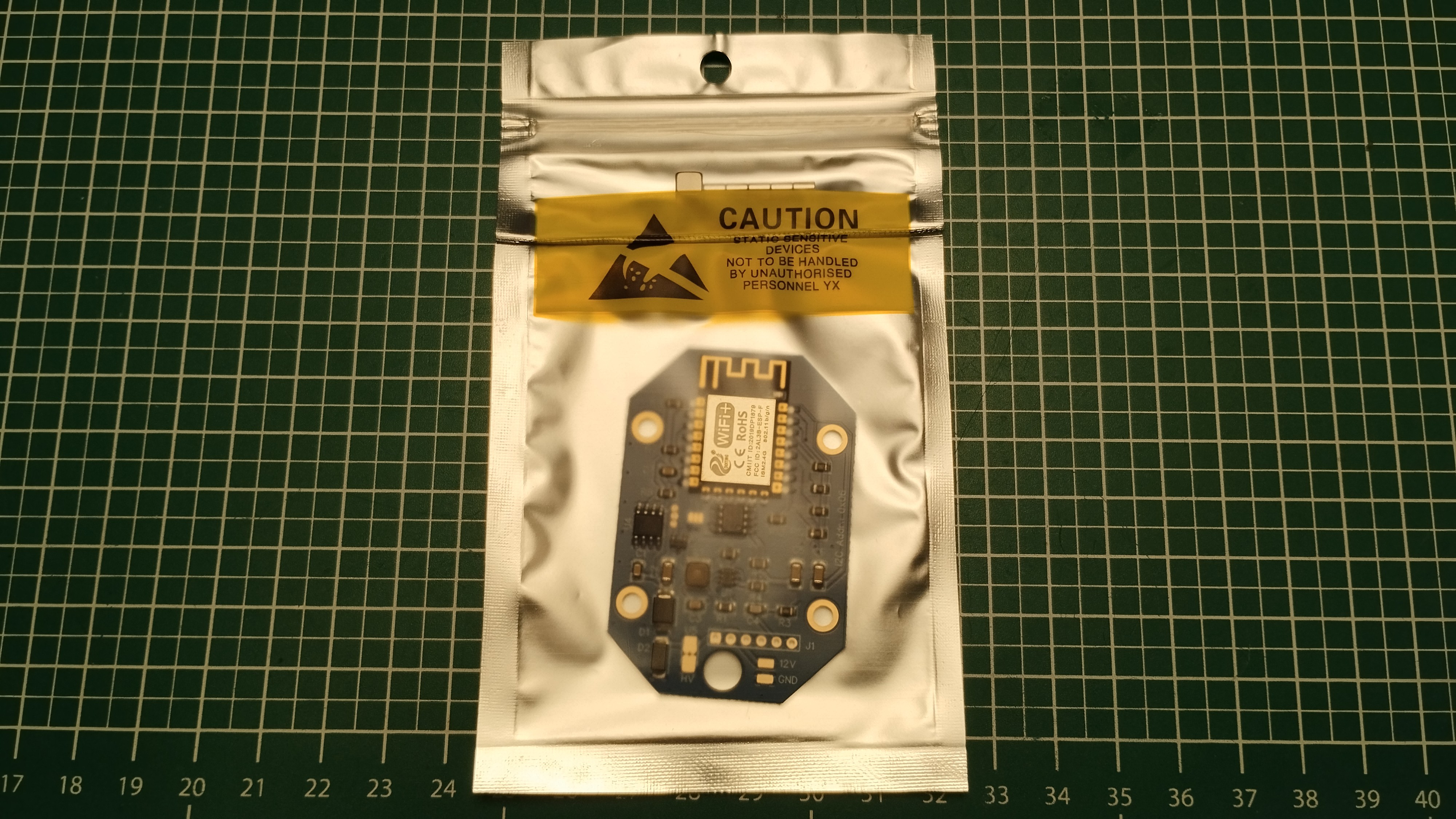

../_images/Final_Product.jpg

Fig.: Final product

Acceptance

  • Uniform orientation of the boards

  • Only tested and successfully inspected boards in the bag

  • Correct number of parts

  • Airtight sealed board

  • Magnets above the weld seam

  • No magnets in the board area

  • Correctly sealed bag
