Documents

Gerber files for Yachta PCB

BOM and pick and place list

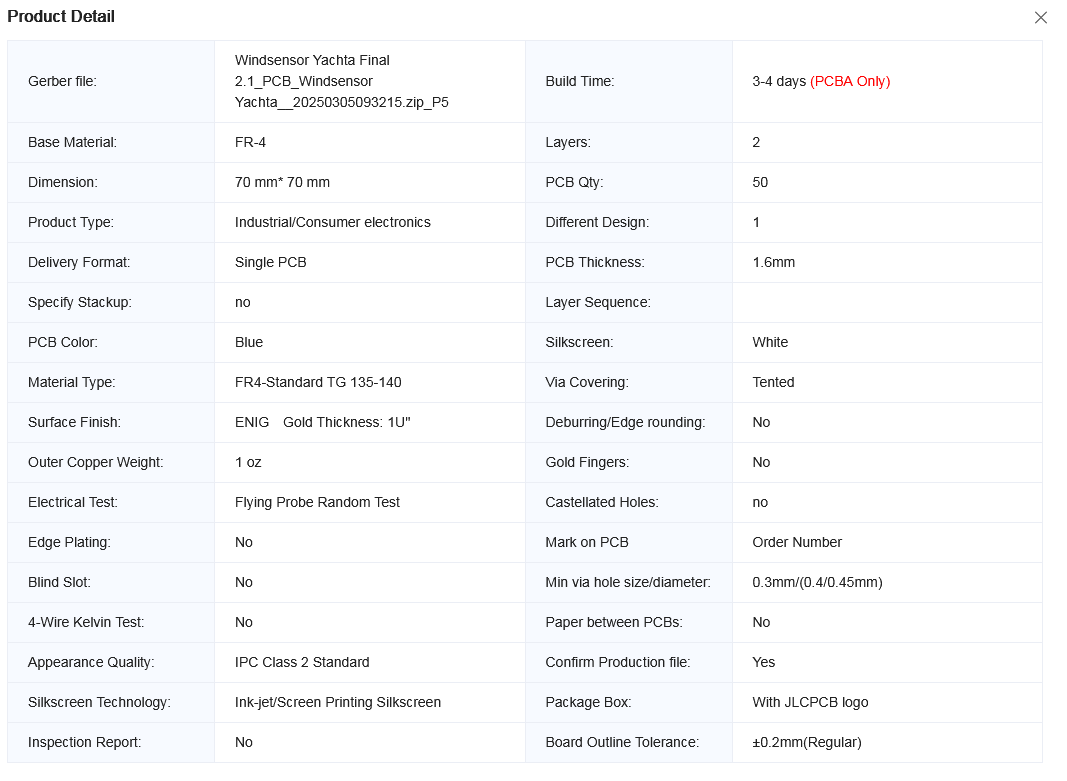

Production details

Schematic

Yachta PCB

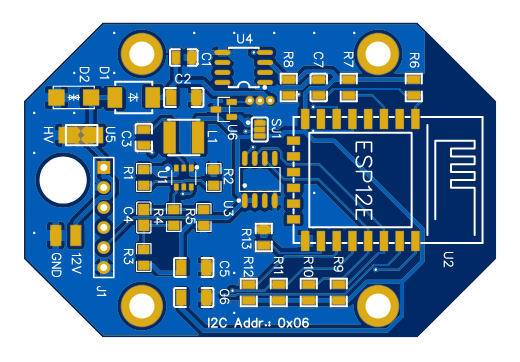

../_images/PCB_Yachta_V2.1_Top.png

Fig.: PCB top side V2.1

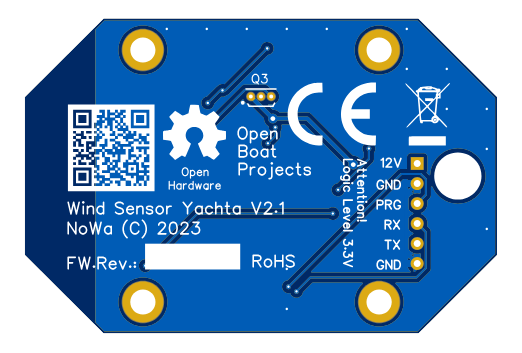

../_images/PCB_Yachta_V2.1_Bot.png

Fig.: PCB bottom side V2.1

../_images/Yachta_BCP_V2.1.png

Fig.: PCB top side 3D V2.1

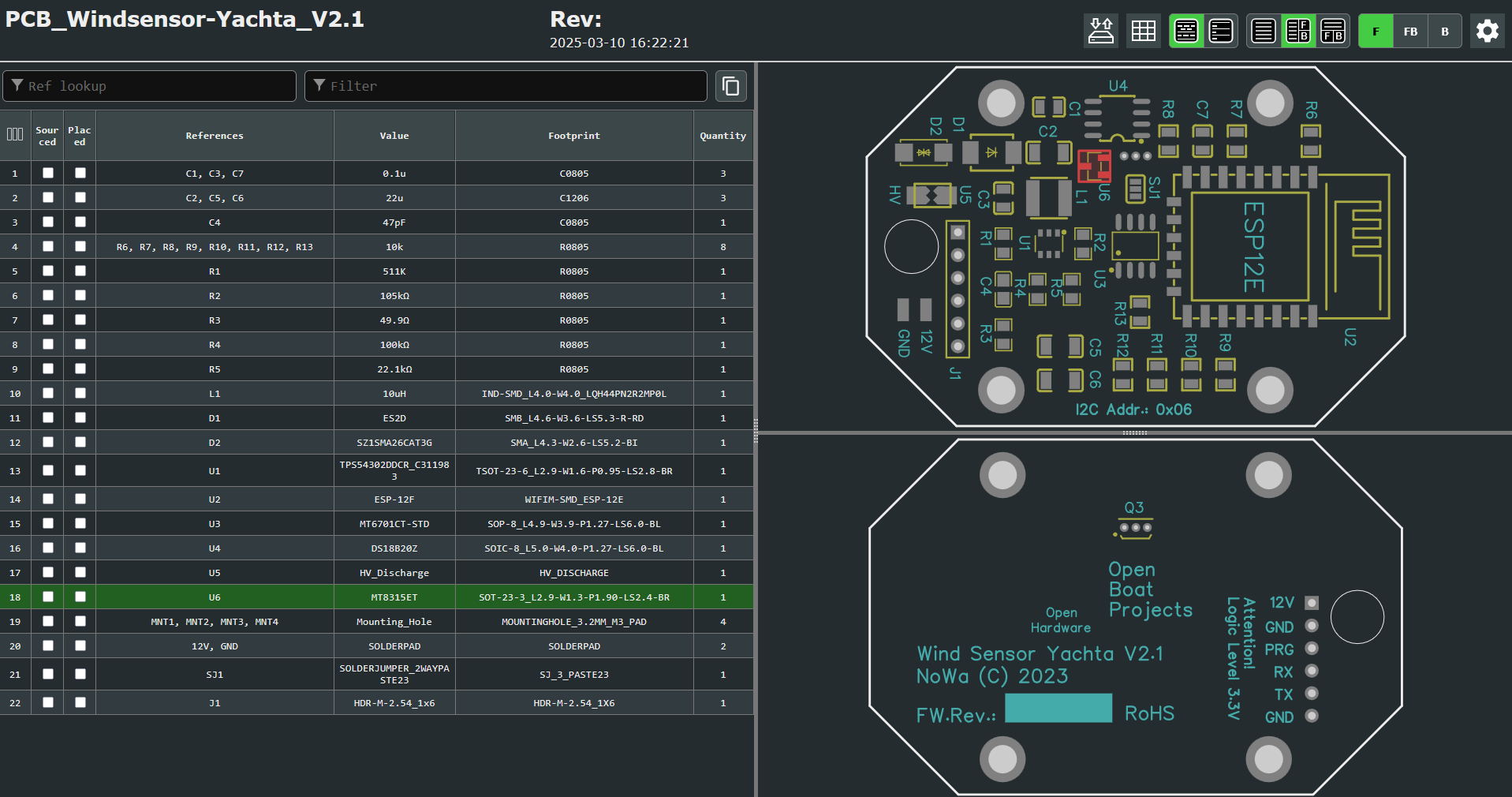

Online tool parts placing


Fig.: Online parts placing tool
